GENERAL INFO

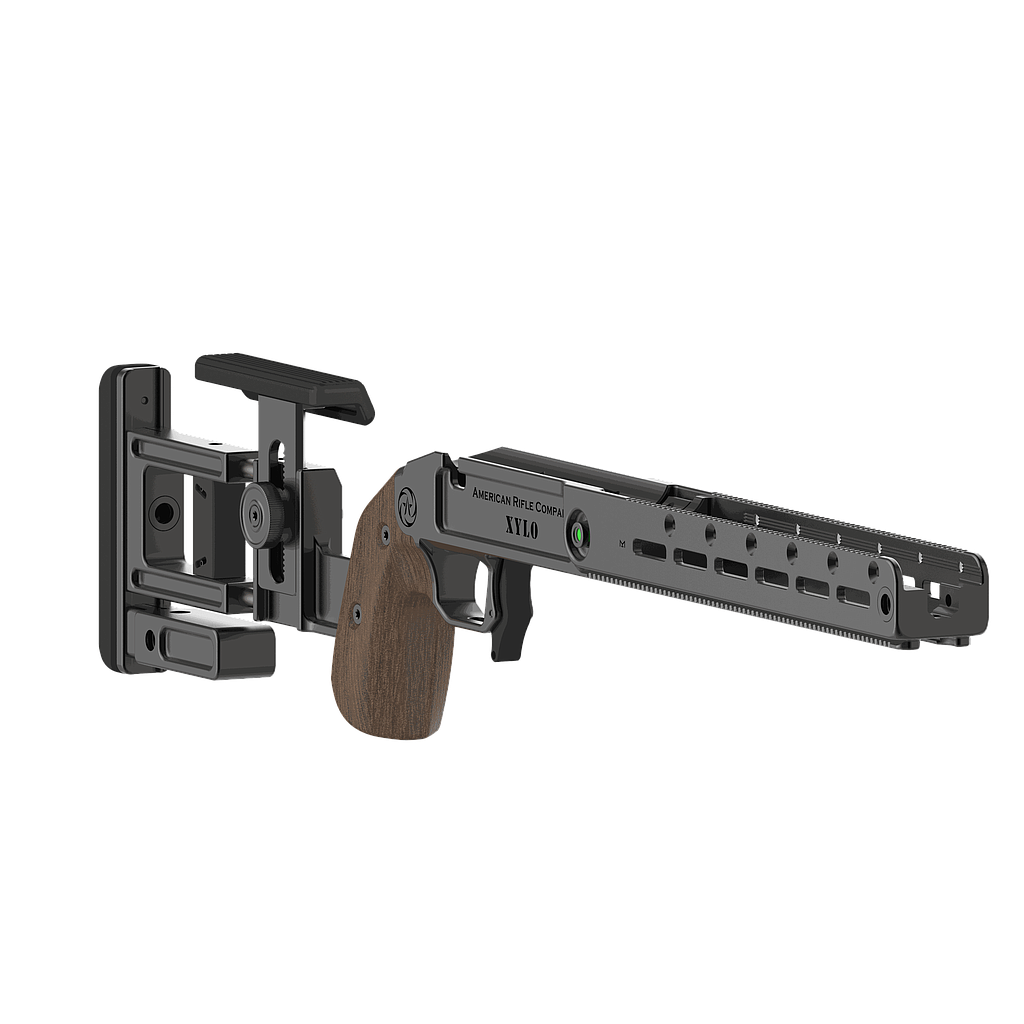

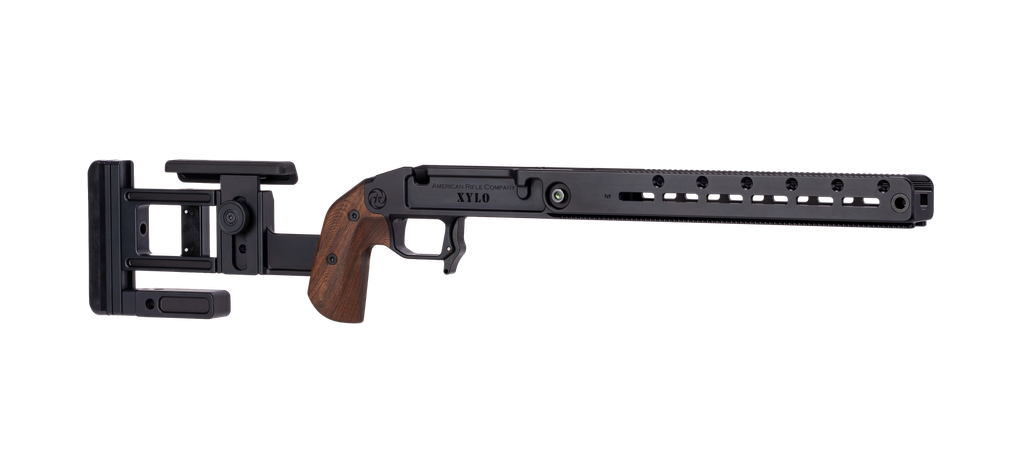

- Machined from a single piece of 7075 aluminum for exceptional strength
- Short action chassis weighs 4.6 pounds
- Long action chassis weighs 4.7 pounds
- Aluminum bag rider is included
COMPATIBILITY
- Coup De Grâce short actions and AW mags are a drop-in fit
- Coup De Grâce short actions and AICS mags require a shorter latch
- Remington M700 actions and clones (Includes Archimedes, Mausingfield, and Nucleus)
- Standard magazine latch is intended for use with AICS magazines
- AW magazines will require a longer magazine latch (Not all 700 actions are AW cut. This does not apply to CDG.)
- 22 LR actions require a longer magazine latch and occasional modification for best fit
- Long action chassis designed for 3.850" (CIP) length magazines
- Relief cut for actions with trigger hangers
- Clearance for up to 1.25" diameter straight barrel
- PLEASE contact us before ordering if you intend to use the forward optic mount and/or ARCA/Picatinny bipod extension with a 1.25" straight barrel.
- Maximum weight is about 10.4 pounds with full weight kit
- Fore end of long action chassis will fit two sets of internal weights and two sets of external weights
- Fore end of short action chassis will fit three sets of internal weights and three sets of external weights
- Chassis includes four hardened stainless steel sling swivel cup inserts with additional sling swivel cups in bag rider
- Butt plate can be adjusted for vertical position and rifle cant (roll)
Please Read:
The Xylo chassis comes standard with a lug clamp for 0.185" thick recoil lugs (fits all ARC actions). Clamps for 0.250" and 0.313" lugs are available for swap on request or can be purchased separately. The Xylo can also be used without the clamp.
