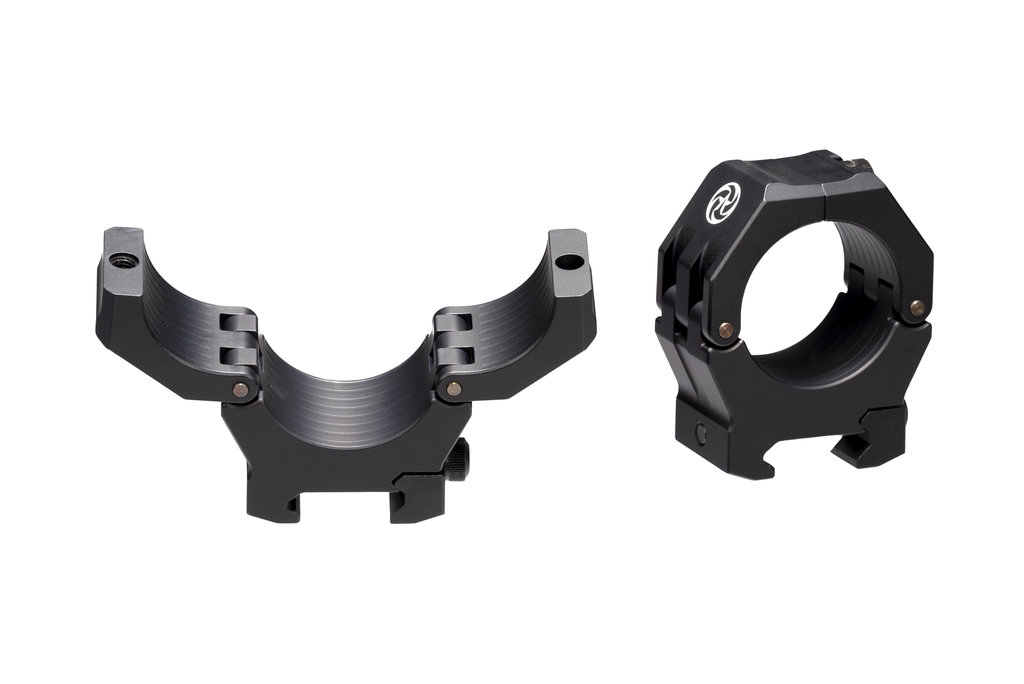

M-BRACE SCOPE RINGS

American Rifle Company's facility is not open to the public. ATF controlled items are only transferable to other FFLs and under no circumstances will these items be transferred directly from American Rifle Company to end users.

M-BRACE Scope Rings

Effortless anti-cant scope installation. Recoil proof non-marring grip.

Available in the size you need

*Also available for March 1-10x24 - click here*

OVERVIEW

Simple and easy no-roll scope mounting
Recoil Proof Non-Marring Scope Grip
Excellent Return-To-Zero
Designed to fit Picatinny (MIL-STD-1913) rails.
CNC Machined High-Strength 7075 Aluminum
Proudly Made in the USA

WHAT'S IN THE BOX

A pair of M-Brace Scope Rings
Install instruction sheet

ATTENTION VINTAGE SCOPES: We highly recommend a lower starting torque value of 40 in-lbs. to mitigate potential deformation to the tube.

Mounting Instructions

DETAILS

M-BRACE is the ultimate scope mounting solution.

Even under the heaviest recoil, M-BRACE Rings hold firmly without marring or indenting the scope. These uniquely split rings maintain reticle alignment during scope installation while their low profile leaves the shooter with a clear view of the turrets.

M-BRACE Rings feature a rail interface which precisely and correctly engages rails, even those which fail to meet Mil and STANAG specification. The result is excellent return-to-zero performance.

Extremely strong, M-BRACE Rings are CNC machined from 7075 aluminum alloy and anodized for excellent corrosion resistance and a matte-black finish.

DIMENSIONS

Height is measured from optical center to top of pic rail.

WEIGHT

Weight (ounces) and mass (grams) listed for sizes available.

Numbers are for a complete set with hardware weighed on a scale with 0.1 oz resolution.

	1" Dia	30mm Dia	34mm Dia	35mm Dia	36mm Dia	40mm Dia
36mm Height (X-High)	7.3 oz 208 g	7.6 oz 216 g	7.9 oz 223 g	7.9 oz 224 g	8.0 oz 226 g	8.1 oz 230 g
32mm Height (High)	6.8 oz 194 g	7.1 oz 201 g	7.3 oz 207 g	7.7 oz 219 g	7.8 oz 220 g	7.8 oz 220 g
28mm Height (Med)	6.3 oz 179 g	6.9 oz 195 g	6.9 oz 196 g	6.9 oz 196 g	6.9 oz 196 g	6.9 oz 195 g
24mm Height (Low)	6.0 oz 171 g	6.1 oz 173 g	6.1 oz 173 g	6.1 oz 173 g	6.1 oz 173 g	-
20mm Height (X-Low)	5.3 oz 150 g	5.3 oz 151 g	-	-	-	-

We highly recommend using the penny method if you have all components of your build!

If you are unable to do the penny method, the easiest way for us to provide a good estimate for your build is by phone or email. 206-226-4387 / [email protected]

Please provide us the following information:

Scope model
Rifle type/brand/model you are mounting the scope on
Barrel contour

Selecting ring height using pennies.

Step 1

Stack pennies on top of scope mounting rail. Use the same number of pennies in each stack.

Step 2

Set and hold scope on pennies. Adjust number of pennies until scope is at desired height with adequate clearance to barrel.

Step 3

If you use scope caps, test fit with scope caps.

Step 4

Count the number of pennies in one stack.

Find the intersection of the scope diameter and the number of pennies. This is the recommended scope ring height.

The penny thickness used for this calculation is 1.5mm (0.059 inch).

SPARE PARTS

Please check the parts page for replacement parts.

If you do not see the part you are looking for, please contact us.

Click Here for Parts
