OVERVIEW
- Simple and easy no-roll scope mounting
- Recoil Proof Non-Marring Grip
- Excellent Return-To Zero
- Designed to fit Picatinny (MIL-STD-1913) rails
- CNC Machined High-Strength 7075 Aluminum
- Proudly Made in the USA
DETAILS

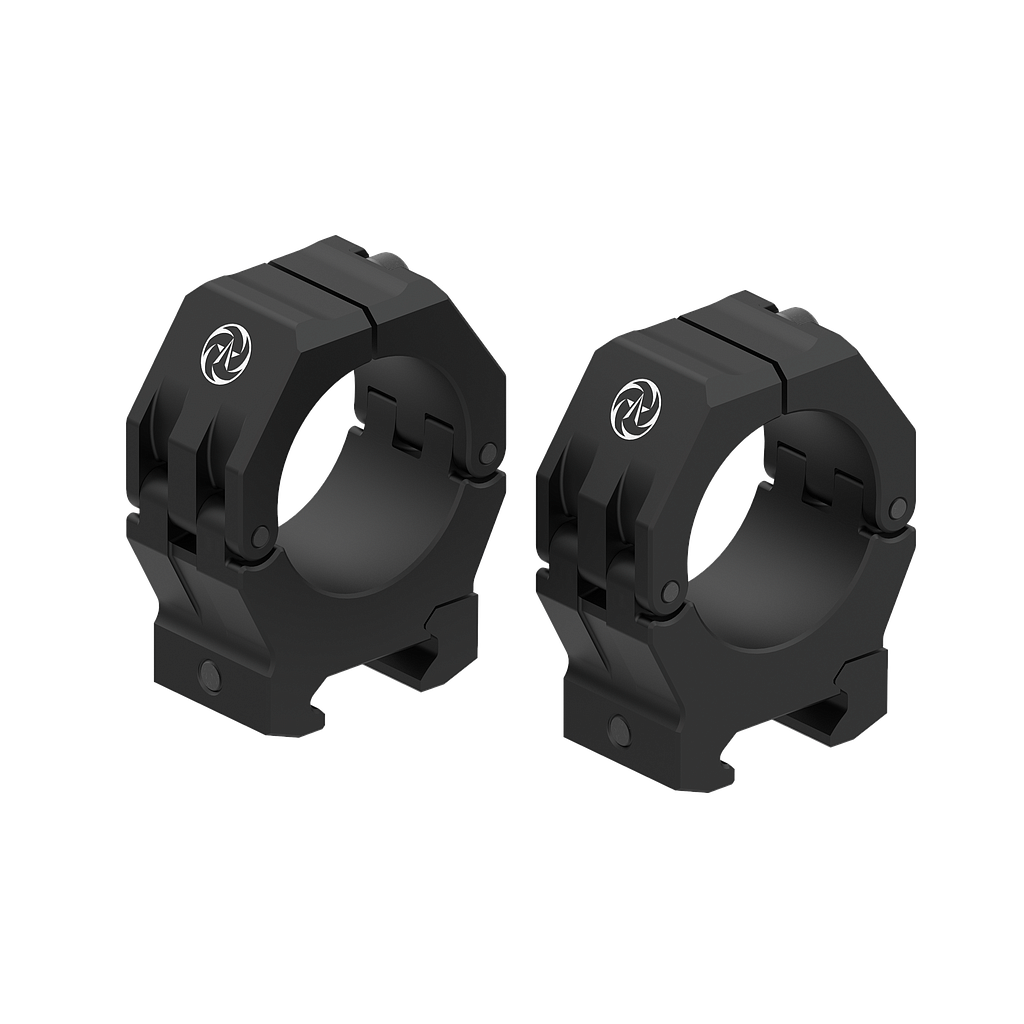

M-BRACE is the ultimate scope mounting solution.

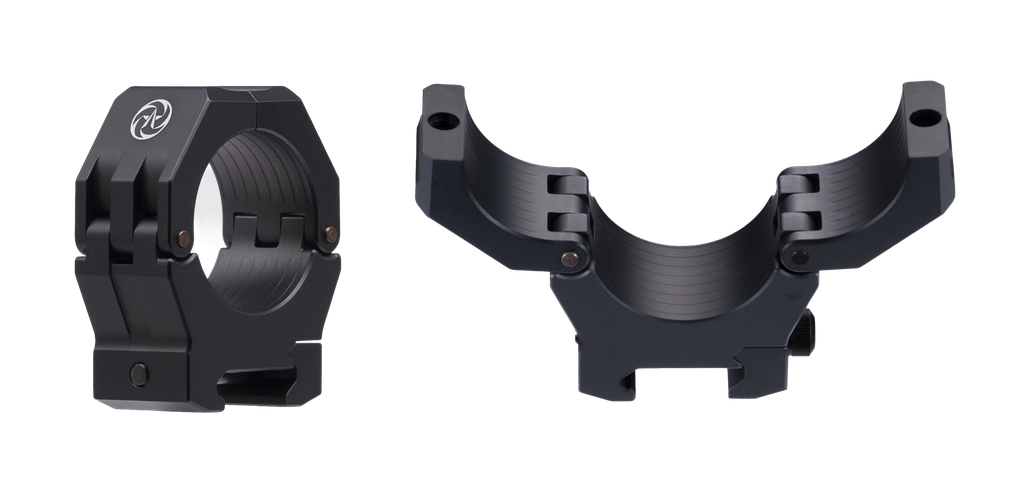

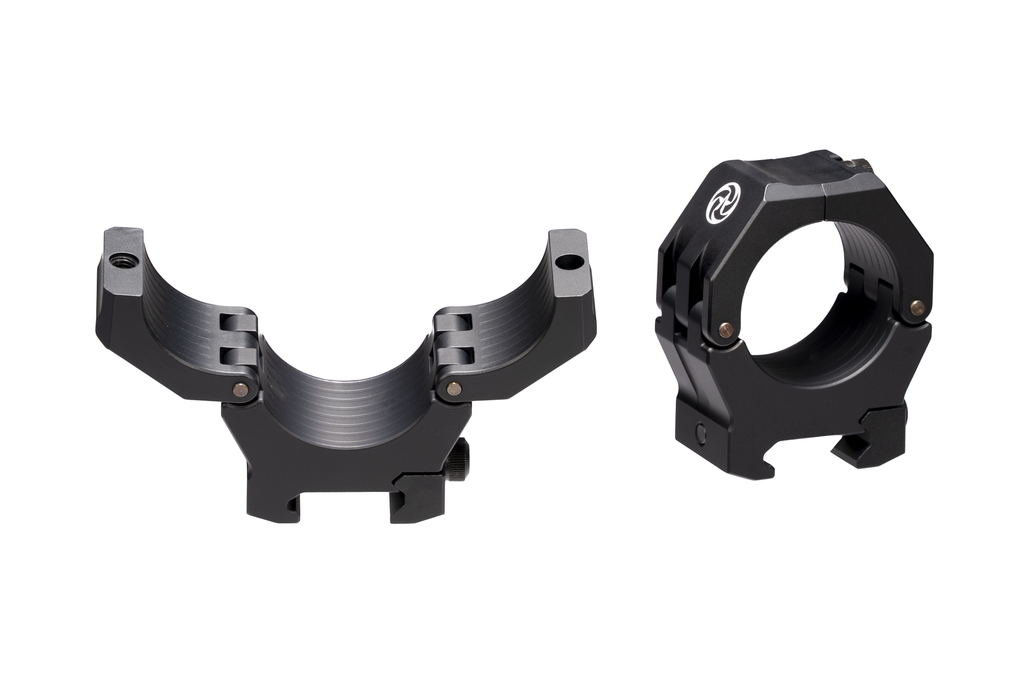

Even under the heaviest recoil, M-BRACE Rings hold firmly without marring or indenting the scope. These uniquely split rings maintain reticle alignment during scope installation while their low profile leaves the shooter with a clear view of the turrets.
M-BRACE Rings feature a rail interface which precisely and correctly engages rails, even those which fail to meet Mil and STANAG specification. The result is excellent return-to-zero performance.
Extremely strong, M-BRACE Rings are CNC machined from 7075 aluminum alloy and anodized for excellent corrosion resistance and a matte-black finish.
DIMENSIONS
Height is measured from optical center to top of pic rail.
WEIGHT
Weight (ounces) and mass (grams) listed for sizes available.
Numbers are for a complete set with hardware weighed on a scale with 0.1 oz resolution.
| 1" Dia | 30mm Dia | 34mm Dia | 35mm Dia | 36mm Dia | 40mm Dia | |
| 36mm Height (X-High) | 7.3 oz 208 g | 7.6 oz 216 g | 7.9 oz 223 g | 7.9 oz 224 g | 8.0 oz 226 g | 8.1 oz 230 g |
| 32mm Height (High) | 6.8 oz 194 g | 7.1 oz 201 g | 7.3 oz 207 g | 7.7 oz 219 g | 7.8 oz 220 g | 7.8 oz 220 g |
| 28mm Height (Med) | 6.3 oz 179 g | 6.9 oz 195 g | 6.9 oz 196 g | 6.9 oz 196 g | 6.9 oz 196 g | 6.9 oz 195 g |
| 24mm Height (Low) | 6.0 oz 171 g | 6.1 oz 173 g | 6.1 oz 173 g | 6.1 oz 173 g | 6.1 oz 173 g | - |
| 20mm Height (X-Low) | 5.3 oz 150 g | 5.3 oz 151 g | - | - | - | - |
We highly recommend using the penny method if you have all components of your build!
If you are unable to do the penny method, the easiest way for us to provide a good estimate for your build is by phone or email. 206-226-4387 / [email protected]
Please provide us the following information:
- Scope model
- Rifle type/brand/model you are mounting the scope on
- Barrel contour
Selecting Ring Height Using Pennies
Step 1
Stack pennies on top of scope mounting rail. Use the same number of pennies in each stack.
Step 2
Set and hold scope on pennies. Adjust number of pennies until scope is at desired height with adequate clearance to barrel.
Step 3
If you use scope caps, test fit with scope caps.
Step 4
Count the number of pennies in one stack.
Find the intersection of the scope diameter and the number of pennies. This is the recommended scope ring height.
The penny thickness used for this calculation is 1.5mm (0.059 inch).
