OVERVIEW

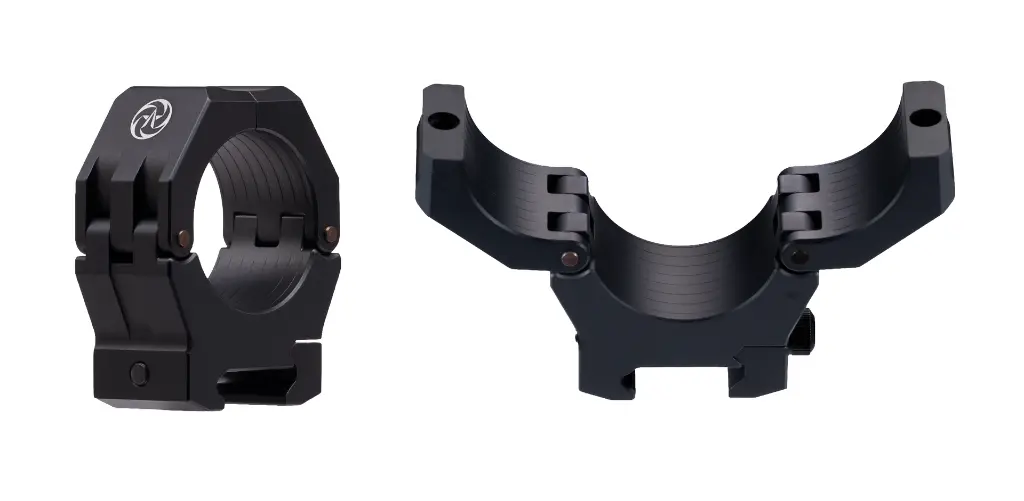

Zero Reticle Cant During Scope Installation
During scope installation, M-BRACE makes keeping your reticle aligned nearly effortless because clamping forces are applied symmetrically. M-BRACE keeps the reticle where you want it unlike conventional rings that roll the scope and reticle out of alignment when alternatively tightening screws on opposite sides of the scope.
Zero Cant Returns to Zero
Because M-BRACE does not roll your scope during installation, it remains torsionally relaxed between rings. Therefore, when you remove the scope from the rifle, it does not untwist as it would with conventional rings that rolled it during installation. The M-BRACE rail interfaces stay aligned from ring to ring and can more precisely reengage the rail without twisting the scope. M-BRACE returns your scope to zero.
Engineered Non-Marring Recoil-Proof Grip
CNC Machined from a high-strength 7000 series aluminum alloy, M-BRACE is engineered to secure your expensive scope against the heavy recoil without marring its finish.
Fully Anodized per Mil-A-8625 Type 2
This protects against corrosive attacks such as stress corrosion cracking, exfoliation corrosion, and pitting to which 7000 series alloys are susceptible without full protection.

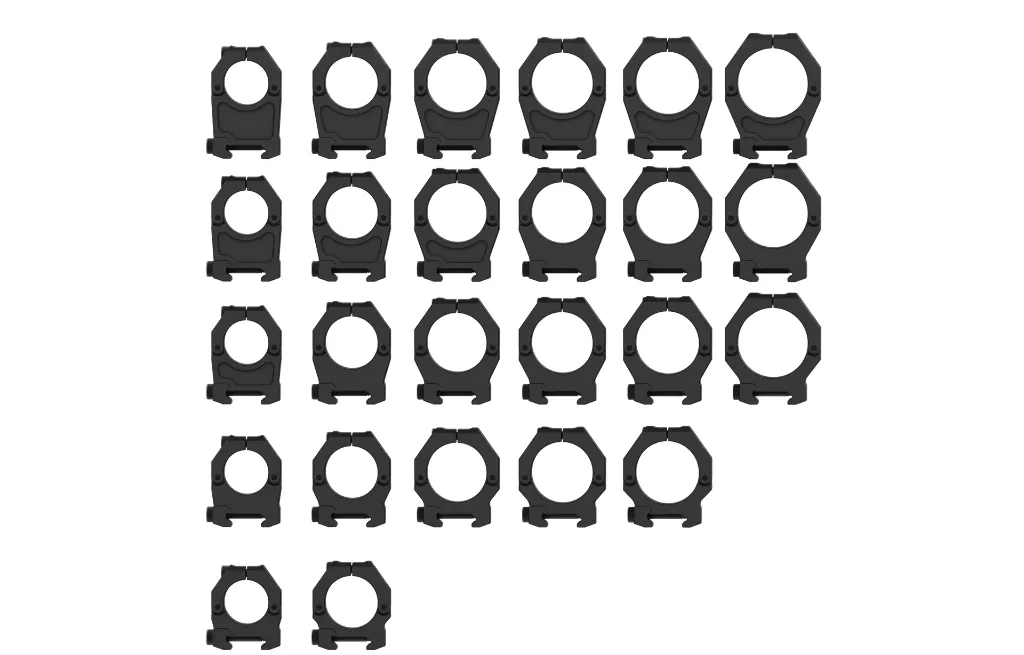

DIMENSIONS
Height is measured from optical center to top of pic rail.
WEIGHT
Weight (ounces) and mass (grams) listed for sizes available.
Numbers are for a complete set with hardware weighed on a scale with 0.1 oz resolution.
| 1" Dia | 30mm Dia | 34mm Dia | 35mm Dia | 36mm Dia | 40mm Dia | |
| 36mm Height (X-High) | 7.3 oz 208 g | 7.6 oz 216 g | 7.9 oz 223 g | 7.9 oz 224 g | 8.0 oz 226 g | 8.1 oz 230 g |
| 32mm Height (High) | 6.8 oz 194 g | 7.1 oz 201 g | 7.3 oz 207 g | 7.7 oz 219 g | 7.8 oz 220 g | 7.8 oz 220 g |
| 28mm Height (Med) | 6.3 oz 179 g | 6.9 oz 195 g | 6.9 oz 196 g | 6.9 oz 196 g | 6.9 oz 196 g | 6.9 oz 195 g |
| 24mm Height (Low) | 6.0 oz 171 g | 6.1 oz 173 g | 6.1 oz 173 g | 6.1 oz 173 g | 6.1 oz 173 g | - |
| 20mm Height (X-Low) | 5.3 oz 150 g | 5.3 oz 151 g | - | - | - | - |
We highly recommend using the penny method if you have all components of your build!
If you are unable to do the penny method, the easiest way for us to provide a good estimate for your build is by phone or email. 206-226-4387 / [email protected]
Please provide us the following information:
- Scope model
- Rifle type/brand/model you are mounting the scope on
- Barrel contour
Selecting Ring Height Using Pennies
Step 1
Stack pennies on top of scope mounting rail. Use the same number of pennies in each stack.
Step 2
Set and hold scope on pennies. Adjust number of pennies until scope is at desired height with adequate clearance to barrel.
Step 3
If you use scope caps, test fit with scope caps.
Step 4
Count the number of pennies in one stack.
Find the intersection of the scope diameter and the number of pennies. This is the recommended scope ring height.
The penny thickness used for this calculation is 1.5mm (0.059 inch).
