Archimedes Bolt Action

1,099.00 1099.0 USD 1,099.00


  • Action Length
    • Short
    • Long
  • Hand
    • Right
    • Left

This combination does not exist.

Please Read

The Archimedes action is no longer in production. Our new Coup De Grâce uses pivoting bolt handle extraction as well as some new features that have been added to its design!

To learn more, please visit the Coup De Grâce page:  Click Here

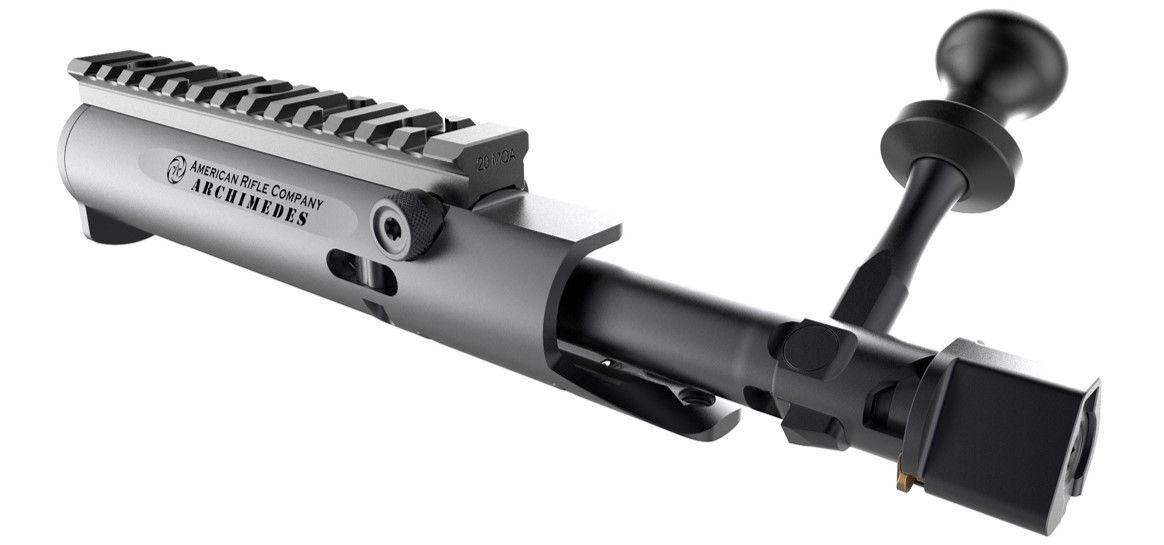

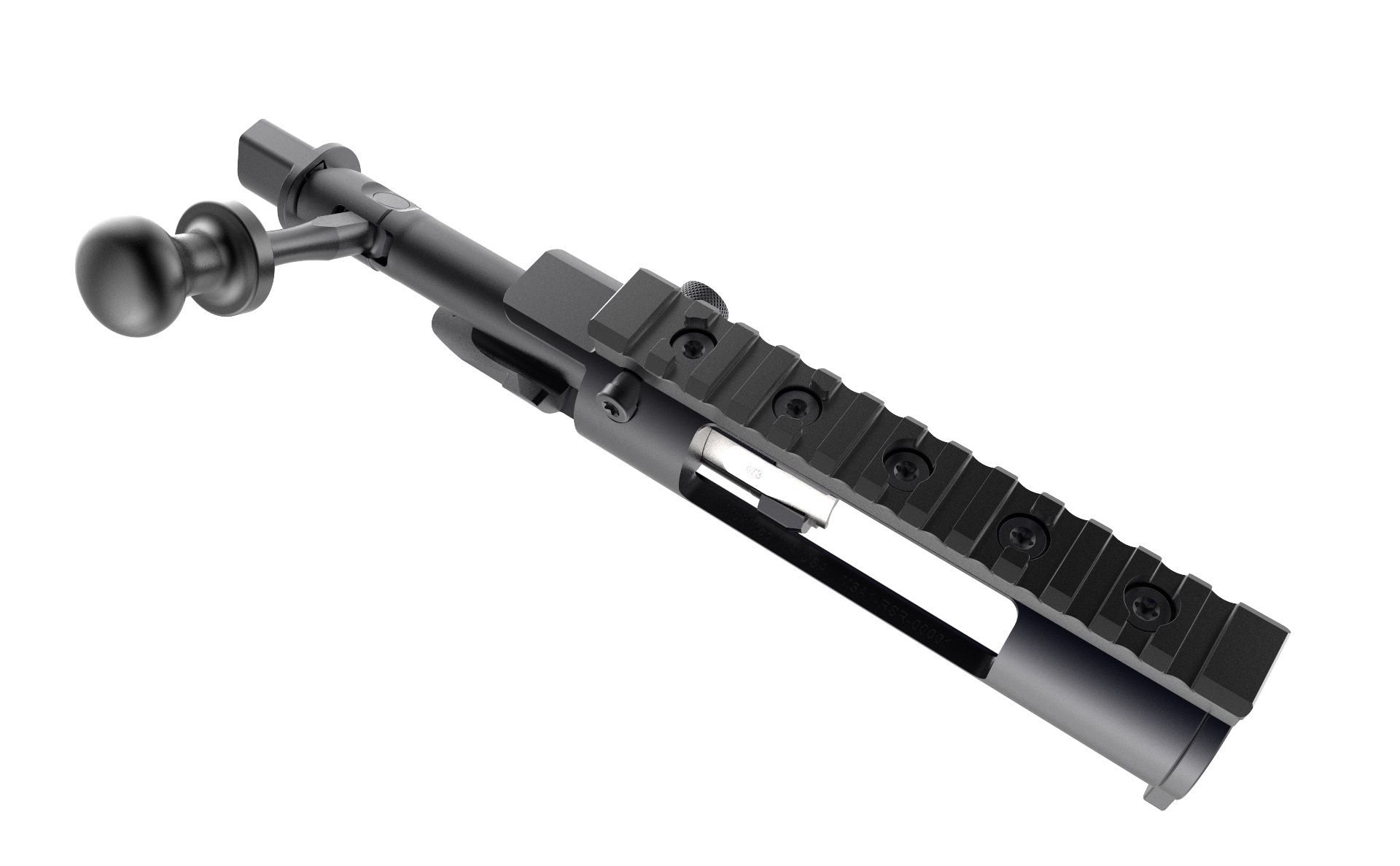

Archimedes Bolt Action

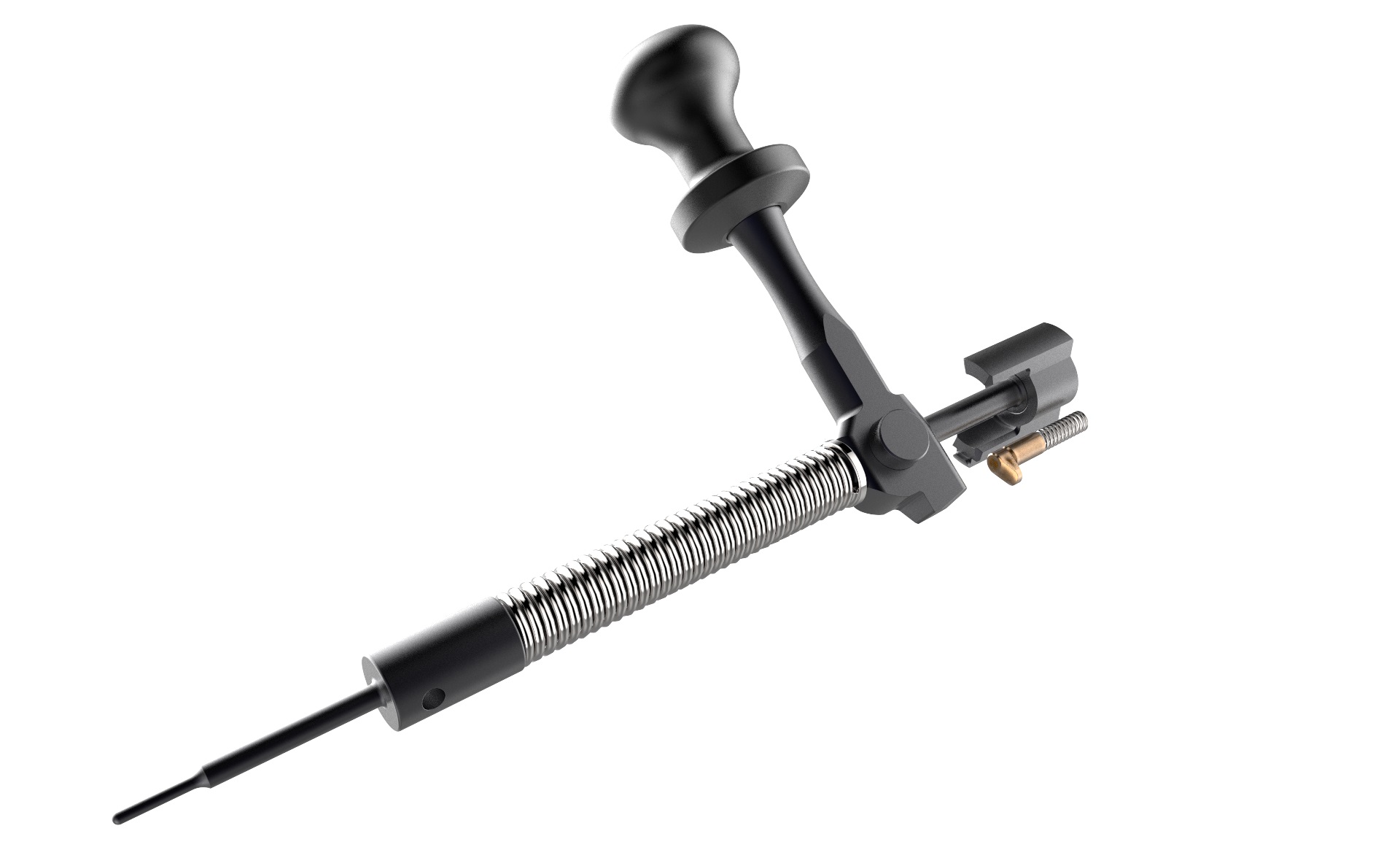

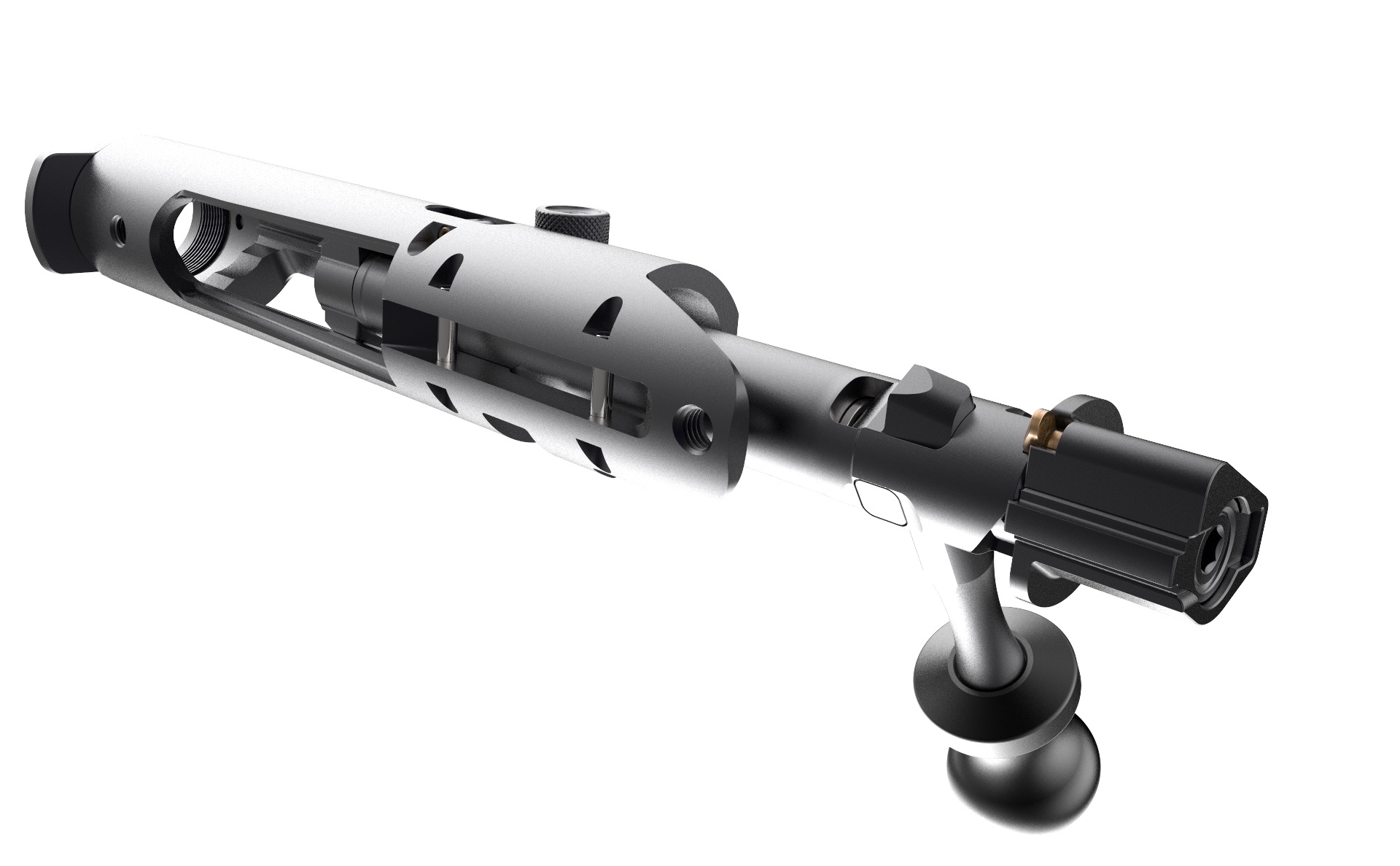

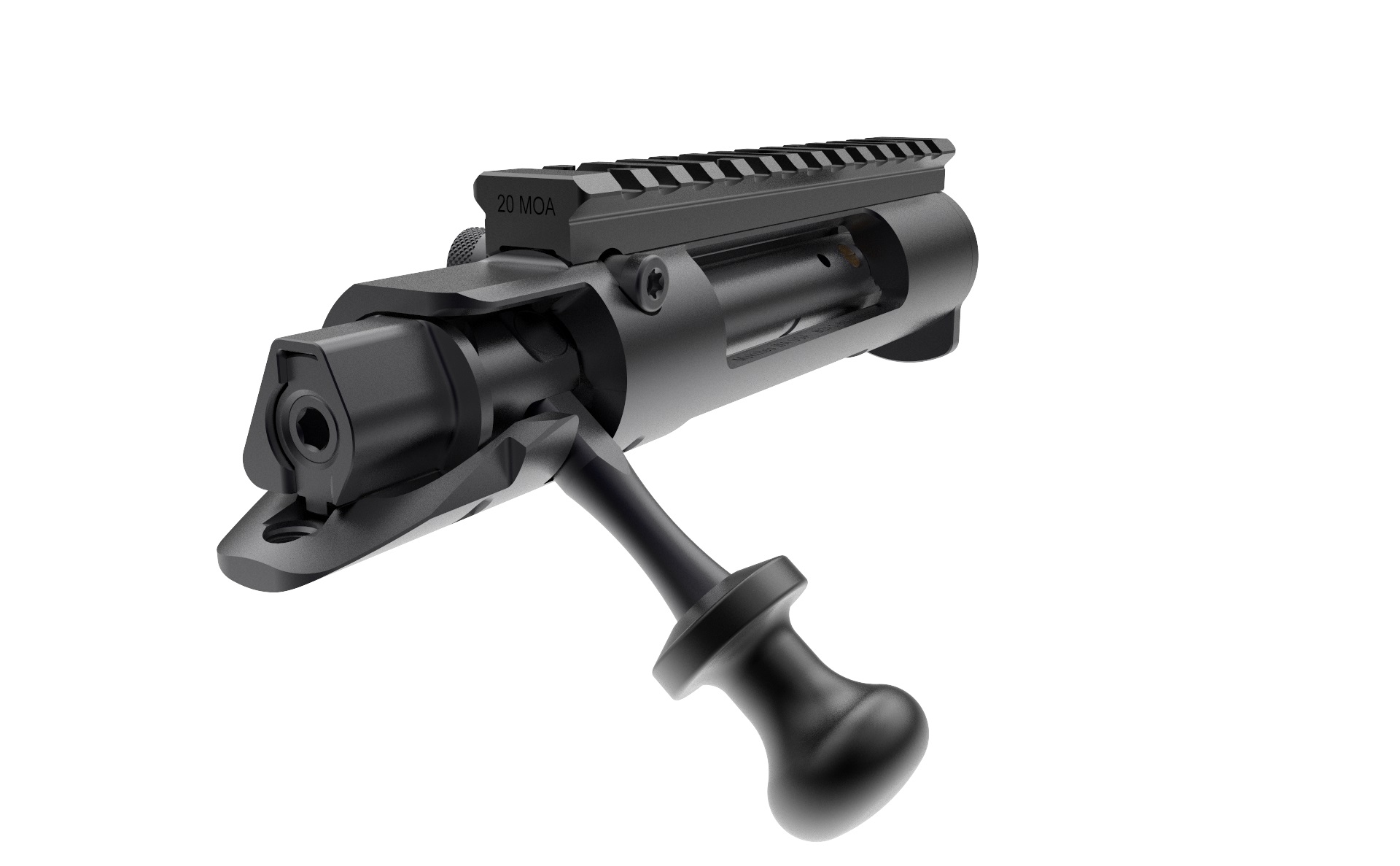

Pivoting bolt handle for the most powerful case extraction that operates with ease.

Odoo CMS - a big picture

Archimedes Action video

by West Desert Shooter


Archimedes Bolt Disassembly video

by West Desert Shooter


Bolt Stop

Hardened steel bolt stop.  Retract the bolt and rotate the bolt stop to remove the bolt.   Remains open until rotated closed.

Odoo - Sample 2 for three columns


Claw-type extractor with controlled round feed.  Secure and large contact area grips the cartridge.

Snaps right over the cartridge when single feeding.  There is no downside to controlled round feed.

Odoo - Sample 3 for three columns

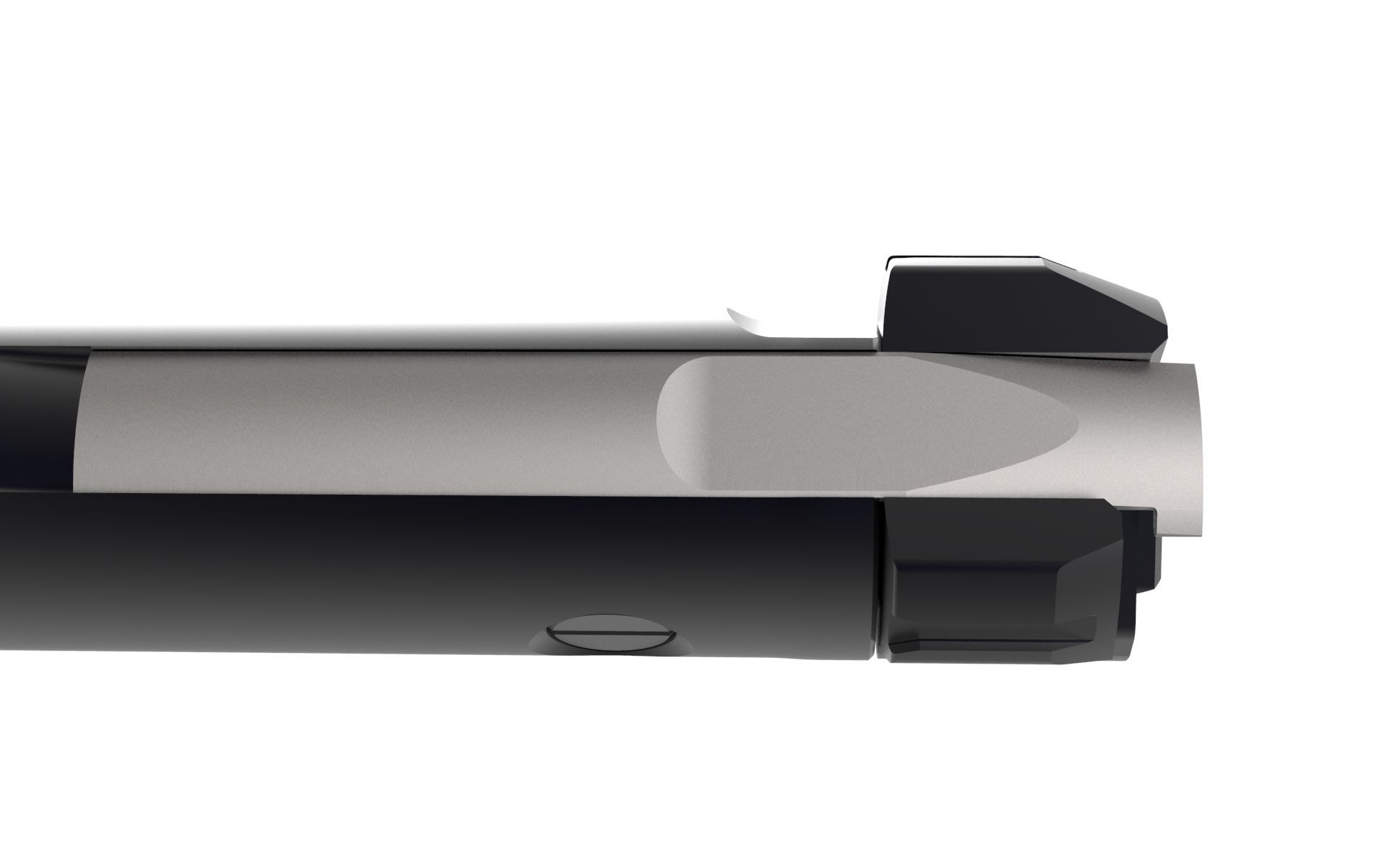

Inertial style ejector.  Simply pivots into position when activated by the bolt head lugs.  Extremely reliable.

Odoo - Sample 1 for three columns

Recoil Lug

Integral recoil lug to the receiver.  Receiver and lug are machined from one solid piece of material.

Odoo - Sample 2 for three columns

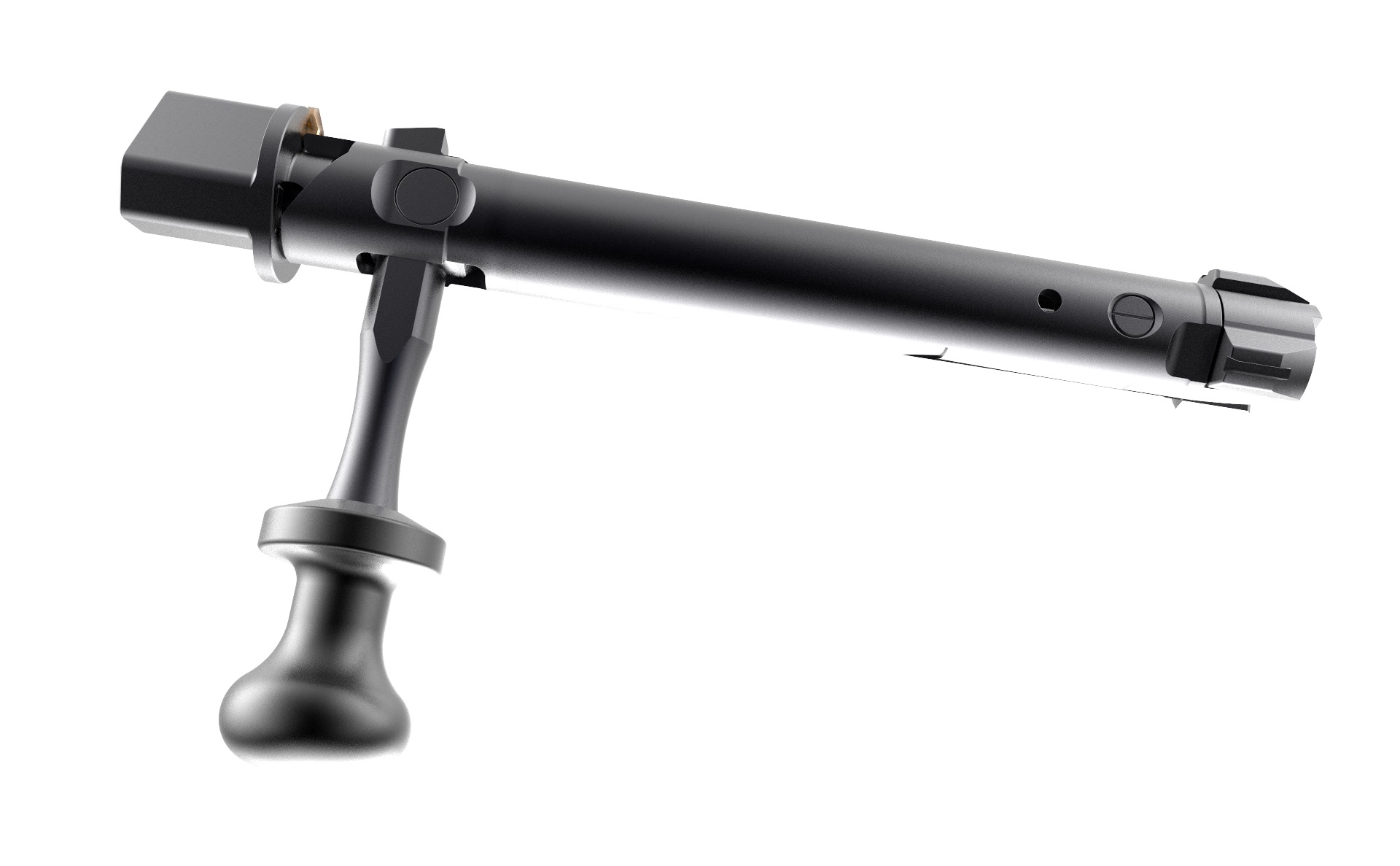

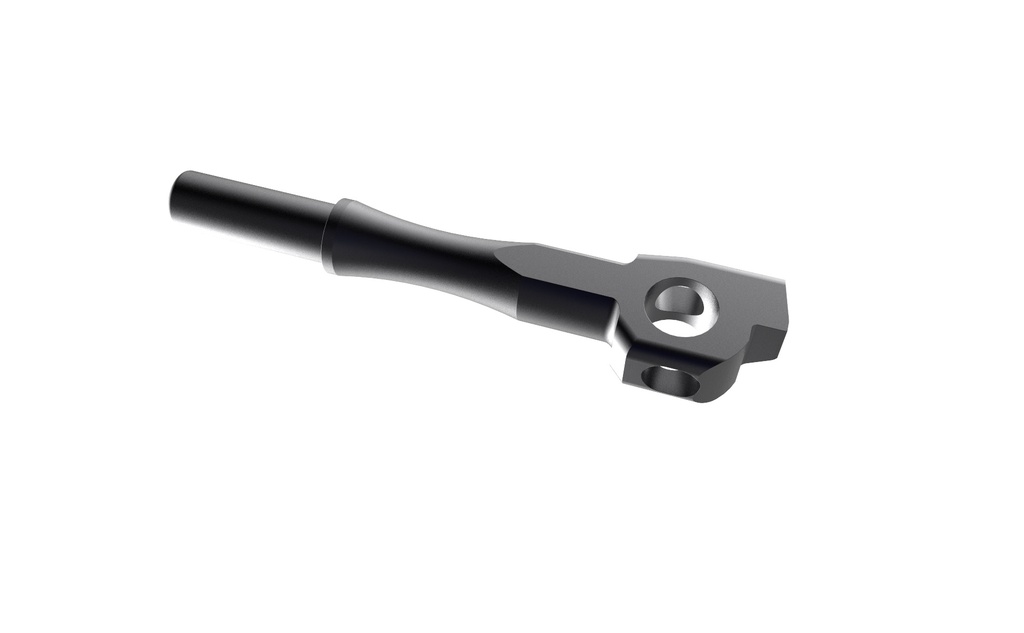

Bolt Knob

Lift with the side of your hand for a fast bolt cycle or grab the knob like a traditional handle.

Odoo - Sample 3 for three columns

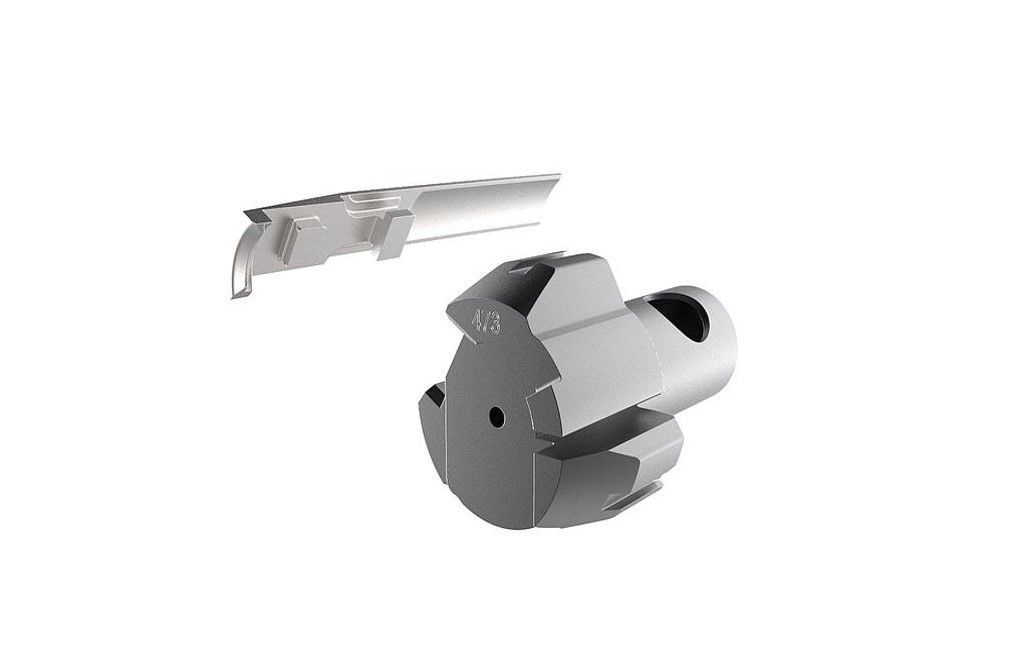

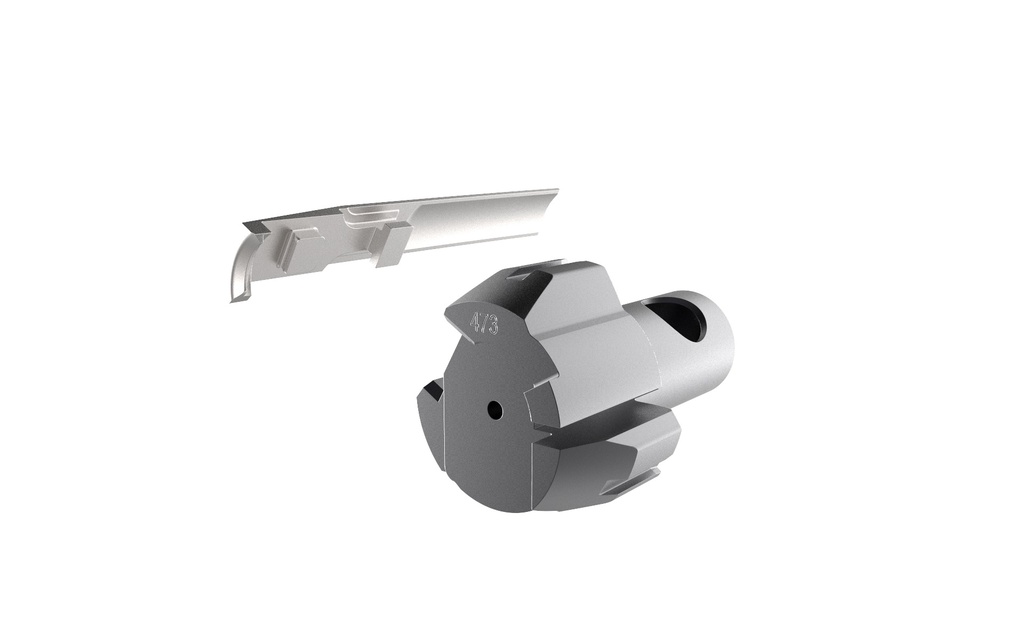

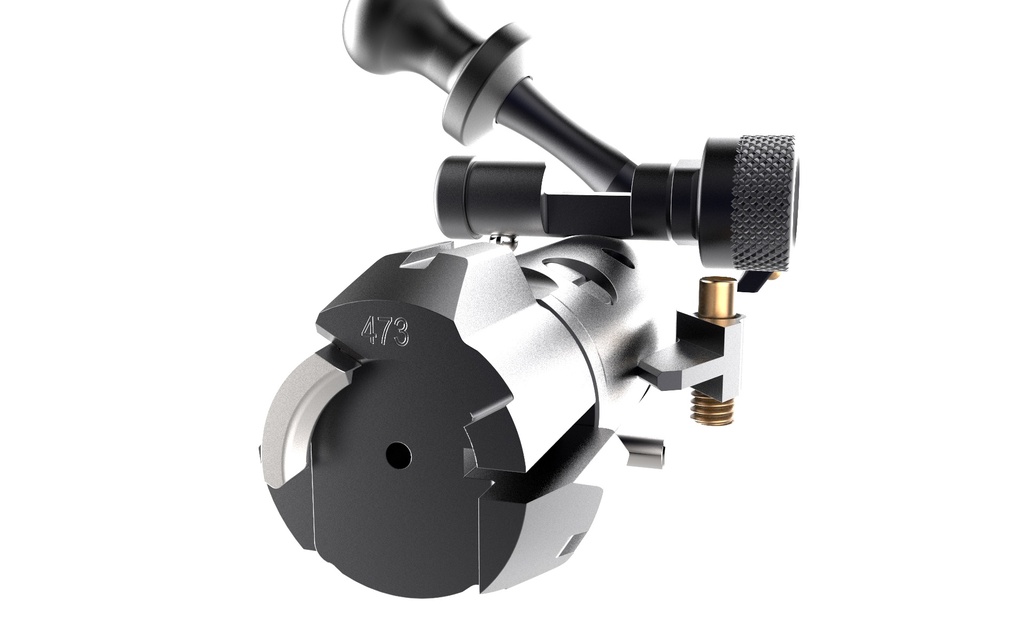

Interchangeable bolt head and extractor

The bolt head and extractor are interchangeable to support multiple cartridges.  They can be swapped in a few minutes and tools are required.  The extractor is specific to each bolt face diameter for optimal engagement with the case.

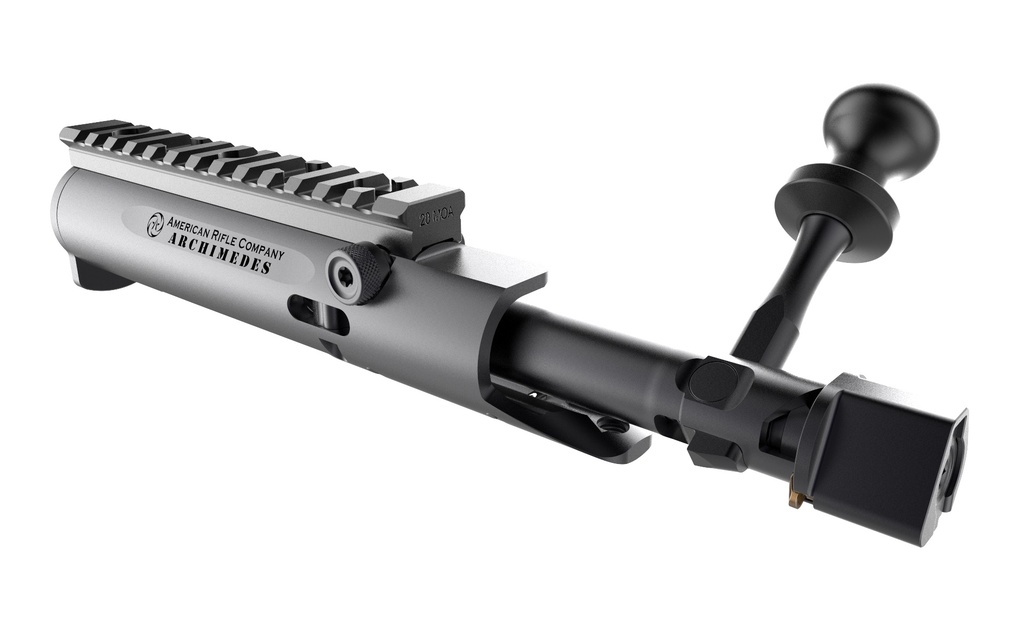

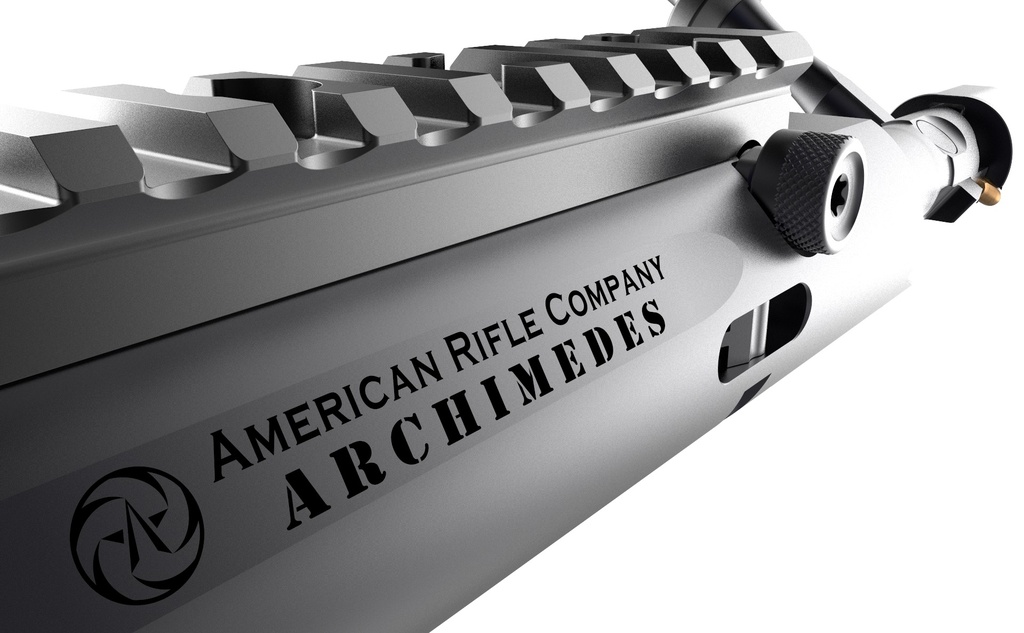

Archimedes Bolt Action

An American Rifle Company Original

The namesake of a brilliant thinker of ancient Greece who proclaimed that he could move the world given a lever and a place to stand, American Rifle Company’s Archimedes bolt action uses the same principle to establish a new standard.

The pivoting bolt handle of the Archimedes action gives you the mechanical advantage to extract even the most stubbornly stuck cases.  Your ability to extract cartridges without the use of tools is now limited only by the strength of the case rim.  And since bolt rotation is no longer necessary for case extraction, 75 degrees of bolt rotation is entirely dedicated to cocking, making cycling the bolt as easy as it gets.

The Archimedes embodies the most significant advancement in bolt action design that has occurred in over 120 years.

  • Proudly engineered and manufactured in the USA

  • Short action weight 2.1 pounds.  Long action weight 2.4 pounds

  • Pivoting bolt handle enables the most effective extraction possible.

  • 75-degree bolt rotation provides excellent knob to scope clearance and shortens bolt cycle.

  • Entire bolt rotation is dedicated to cocking which eases the bolt lift.

  • Ample clearance between bolt and receiver tolerates dirt while cycling the bolt.

  • Dual cocking cams reduce the effects of friction and improve cocking efficiency.

  • 100% cock on opening.

  • Closing the bolt is generally smooth but a slight bump may be felt depending on the trigger used.

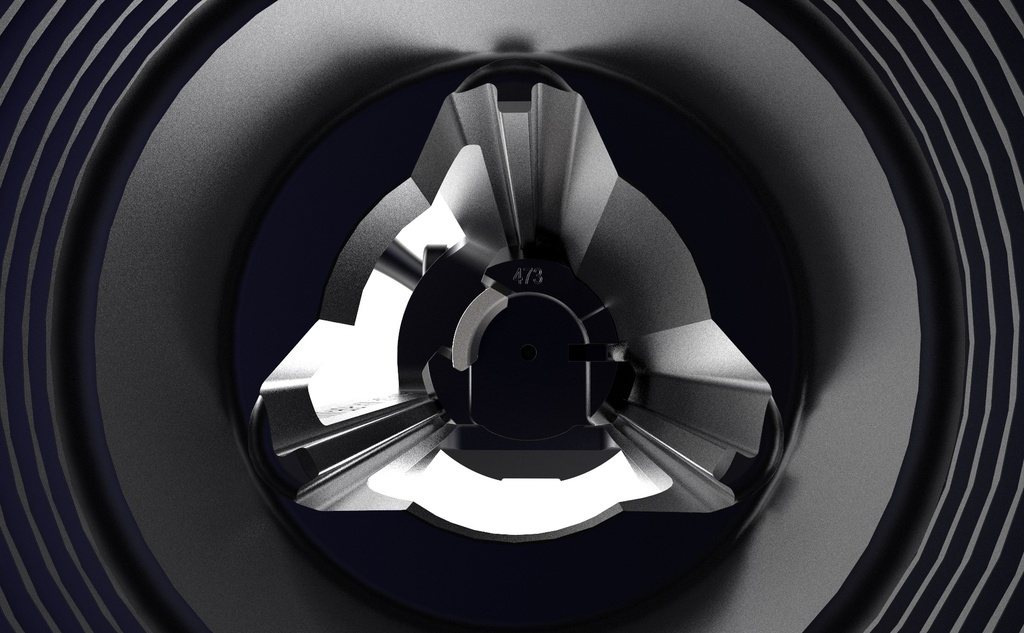

  • Three rail-guided bolt locking-lugs resist binding and provide for an exceptionally smooth bolt cycle.

  • Interchangeable bolt heads

  • Toroidal locking lugs do not require lapping.

  • Controlled-round feeding reduces the risk of double-feed jams.

  • Controllable Springfield inertial ejection.

  • Incredibly robust pin-less bolt stop.

  • Corrosion resistant black nitride finish

  • Integral bolt handle

  • Ergonomic interchangeable bolt knobs.

  • Integral recoil lug.

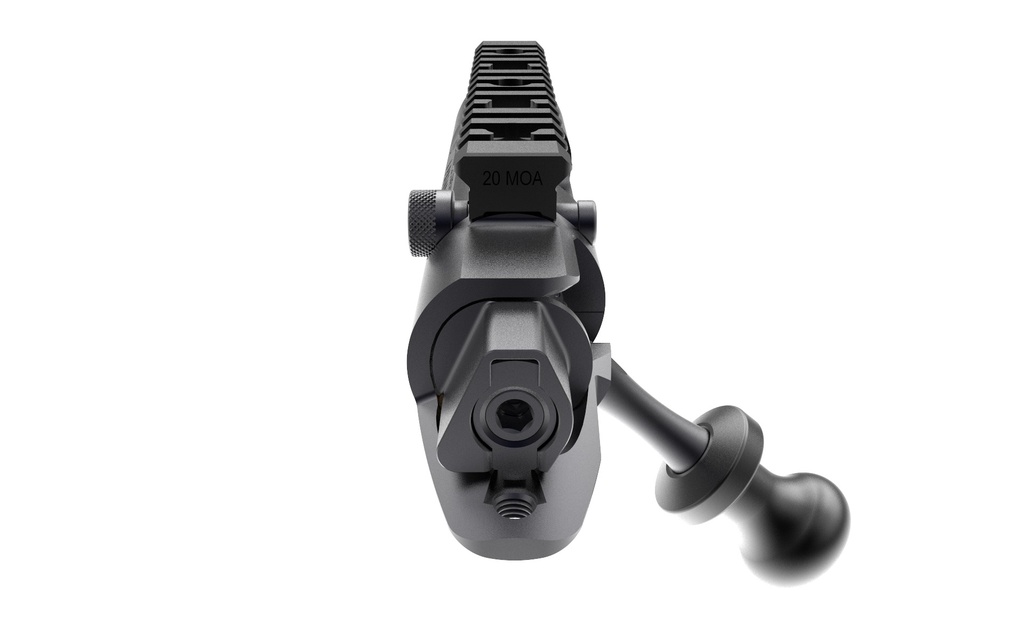

  • Pin-less interchangeable scope mounting rail is secured to the receiver by five conical-head, Torx-drive screws.

  • 0.062 inch diameter firing pin tip for small and large primers, adjustable firing pin protrusion

  • Savage small shank pre-fit compatible barrel thread

  • Compatible with Rem 700 triggers

    • Please note the Trigger Tech Diamond set to pull weights below 1.0 to 1.25 lbs may drop the striker if the bolt is closed aggressively.  The Trigger Tech Diamond can do this with Factory Remington 700 actions so it is not unique to the Archimedes.  However, because the Archimedes does not have an extraction cam the Trigger Tech Diamond is more sensitive to dropping the striker.  We have had no reports of the cartridge firing when this occurs because the bolt must still be rotated to the closed position before the striker may move forward to contact the primer.

  • Compatible with Rem 700 stocks and chassis

  • Rem 700 style mag well accepts AICS style mags, long action accepts CIP length mags (does not accept BDL bottom metal, Mausingfield does)

Parts & Accessories >

Bolt Action Interface Drawing >

Included in Box
  • Complete action

  • 2 Trigger pins

  • Tools: 1 dowel pin to disassemble bolt
