Xylo Forward Internal Weight Kit, 1 pound
![Odoo - Sample 1 for three columns](/web/image/23015/Weights.13.png?access_token=5fca5db6-c6ff-48fd-8552-614b2cd315e0)

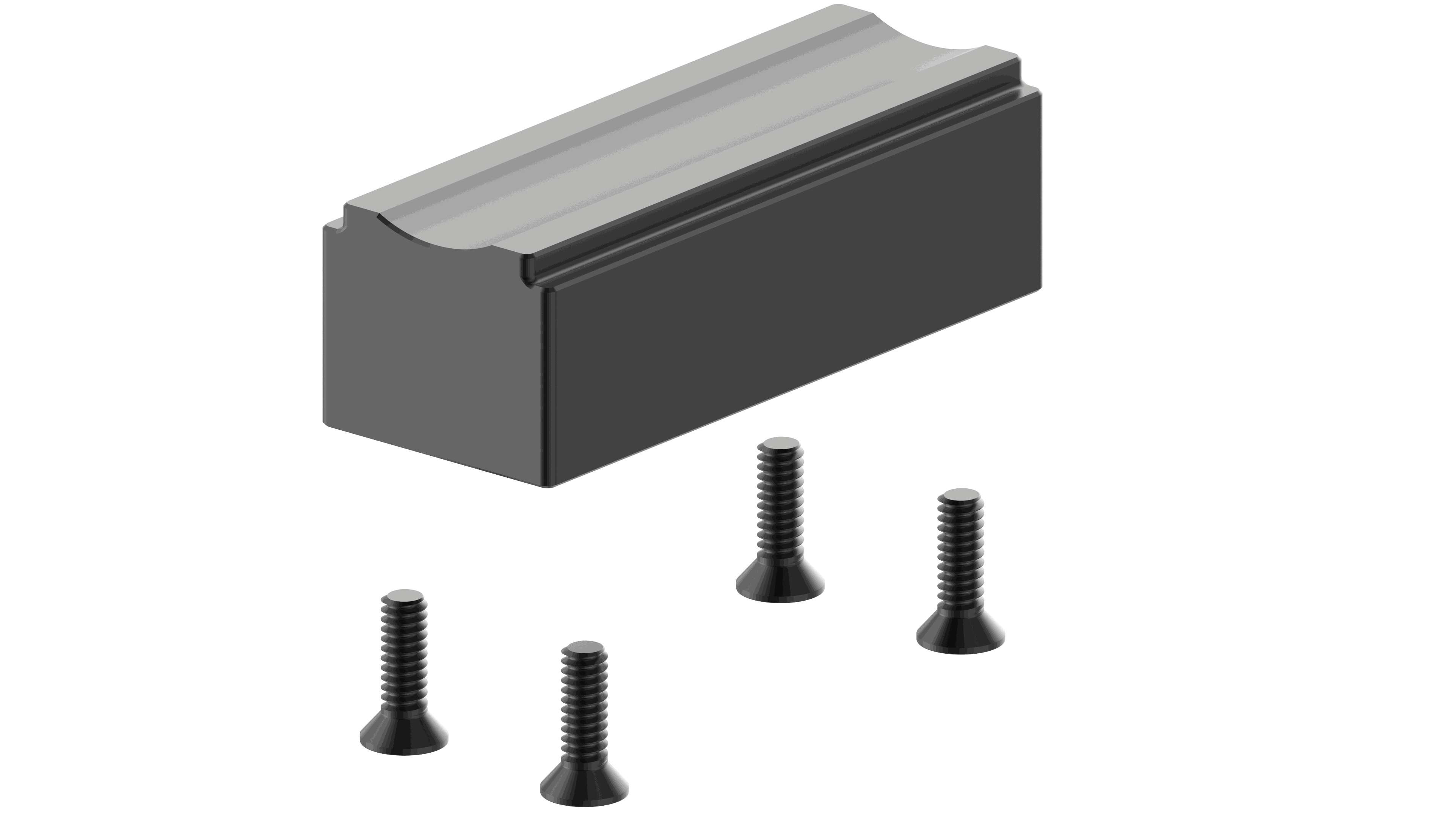

Included in Kit
Included: 1 weight and 4 screws
![Odoo - Sample 2 for three columns](/web/image/23039/Weights.15.png?access_token=dbdf64a0-2929-46fa-a2e7-fe0f6003d2b6)
Attachment to Chassis
Countersunk holes on bottom of chassis frame positively locate screw heads eliminating any motion during recoil.
Short action chassis shown grayed out.
![Odoo - Sample 3 for three columns](/web/image/23014/Weights.12.png?access_token=3e908a07-5daa-4dcc-b453-2f9fea3ebd5e)
Mounting location
3 kits will fit on short action chassis.
2 kits will fit on a long action chassis.
Short action chassis shown grayed out.
Overview
Forward Internal Weight kit.
Clearance for 1.25" diameter barrel.
Kit weighs 1 pound including screws.
Mounts inside fore end of chassis under the barrel.
Machined steel, coated black.
Uses #10-24, 5/8 inch long flat head screws.
Includes 1 weight and 4 screws.
Made in the USA.
