M-BRACE SCOPE RINGS
M-BRACE Scope Rings
Effortless anti-cant scope installation. Recoil proof non-marring grip.
Available in the size you need
What's in the Box

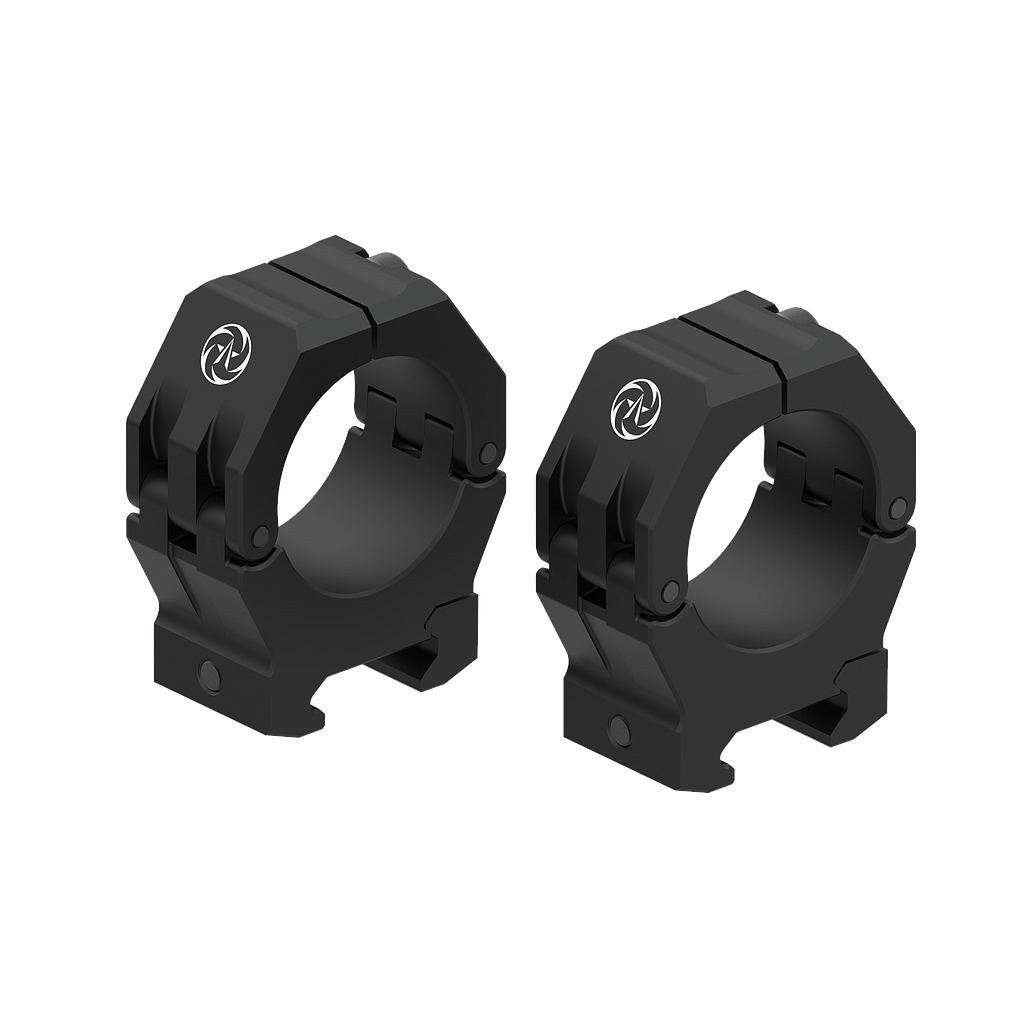

A Pair of M-BRACE Scope Rings
- Mounting instructions
Overview
-
Designed to fit Picatinny (MIL-STD-1913) rails.
Effortless Anti-Cant Scope Installation
Recoil Proof Non-Marring Scope Grip
Excellent Return-To-Zero
CNC Machined High-Strength 7075 Aluminum
Available in the Diameter and Height you need
Scope ring height is from optical center line to top of rail
Proudly made in the USA
Details

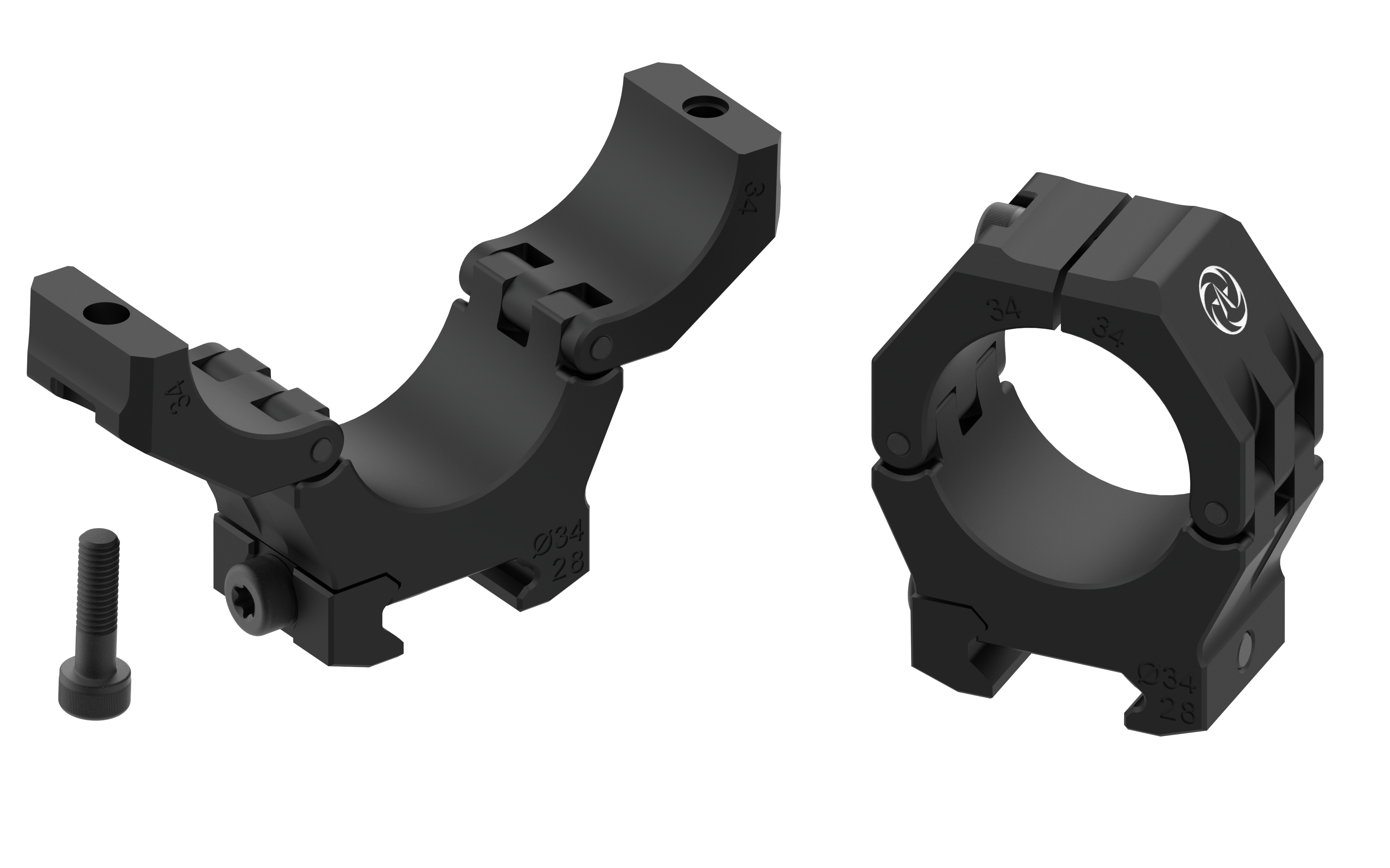

Even under the heaviest recoil, M-BRACE Rings hold firmly without marring or indenting the scope. These uniquely split rings maintain reticle alignment during scope installation while their low profile leaves the shooter with a clear view of the turrets.
M-BRACE Rings feature a rail interface which precisely and correctly engages rails, even those which fail to meet Mil and STANAG specification. The result is excellent return-to-zero performance.
Extremely strong, M-BRACE Rings are CNC machined from 7075 aluminum alloy and anodized for excellent corrosion resistance and a matte-black finish.
Torque spec: 6.2 Nm (55 in-lbs) on scope clamp and rail mount screws.
Dimensions & Weight
Height is measured from optical center to top of pic rail. Larger diameters are limited in lowest available height.
Weight (ounces) and mass (grams) listed for sizes available. Numbers are for a complete set with hardware weighed on a scale with 0.1 oz resolution. Larger diameter sizes may be similar in weight to smaller diameters because the height is defined as the optical center to top of the rail. Therefore as the diameter increases the amount of scope ring material between the bottom of the scope tube and the rail decreases.
| 1" Dia | 30mm Dia | 34mm Dia | 35mm Dia | 36mm Dia | 40mm Dia | |
| 36mm Height (X-High) | 7.3 oz 208 g | 7.6 oz 216 g | 7.9 oz 223 g | 7.9 oz 224 g | 8.0 oz 226 g | 8.1 oz 230 g |
| 32mm Height (High) | 6.8 oz 194 g | 7.1 oz 201 g | 7.3 oz 207 g | 7.7 oz 219 g | 7.8 oz 220 g | 7.8 oz 220 g |
| 28mm Height (Med) | 6.3 oz 179 g | 6.9 oz 195 g | 6.9 oz 196 g | 6.9 oz 196 g | 6.9 oz 196 g | 6.9 oz 195 g |
| 24mm Height (Low) | 6.0 oz 171 g | 6.1 oz 173 g | 6.1 oz 173 g | 6.1 oz 173 g | 6.1 oz 173 g | - |
| 20mm Height (X-Low) | 5.3 oz 150 g | 5.3 oz 151 g | - | - | - | - |
M-Brace Scope Rings for March 1-10x24 Scope (30/33mm diameter):
M-Brace Scope Rings for March 1-10x24 >
Selecting ring height using pennies.
Step 1
Stack pennies on top of scope mounting rail. Use the same number of pennies in each stack.
Step 2
Set and hold scope on pennies. Adjust number of pennies until scope is at desired height with adequate clearance to barrel.
Step 3
If you use scope caps, test fit with scope caps.
Step 4
Count the number of pennies in one stack.
Find the intersection of the scope diameter and the number of pennies (Number in one stack). This is the recommended scope ring height.
The penny thickness used for this calculation is 1.5mm (0.059 inch).
