BARLOC

  • Barloc Lug/Washer
  • Barrel Shank

$ 150.00 150.0 USD

$ 120.00

This combination does not exist.

Add to Cart

Manufactured in the USA.
Shipping calculated at checkout.

Using the Barloc

Please Read Before Ordering:

  • Some customers have reported a Point of Impact shift if the barrel is struck with a Barloc installed.

  • American Rifle Company has not fully tested what level of impact is required to cause a shift.

  • There are no safety issues.  If this may be a problem for the intended use of your rifle, consider using a standard barrel nut or standard shouldered barrel and an action wrench to remove the barrel.

Product Overview

Product Information:

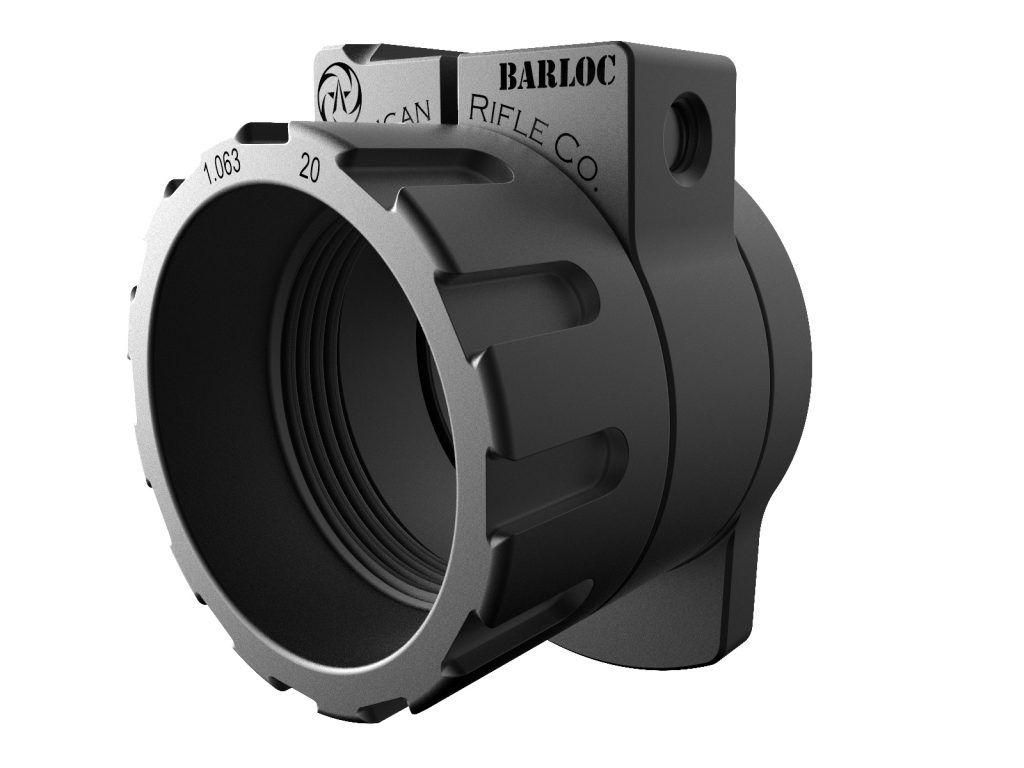

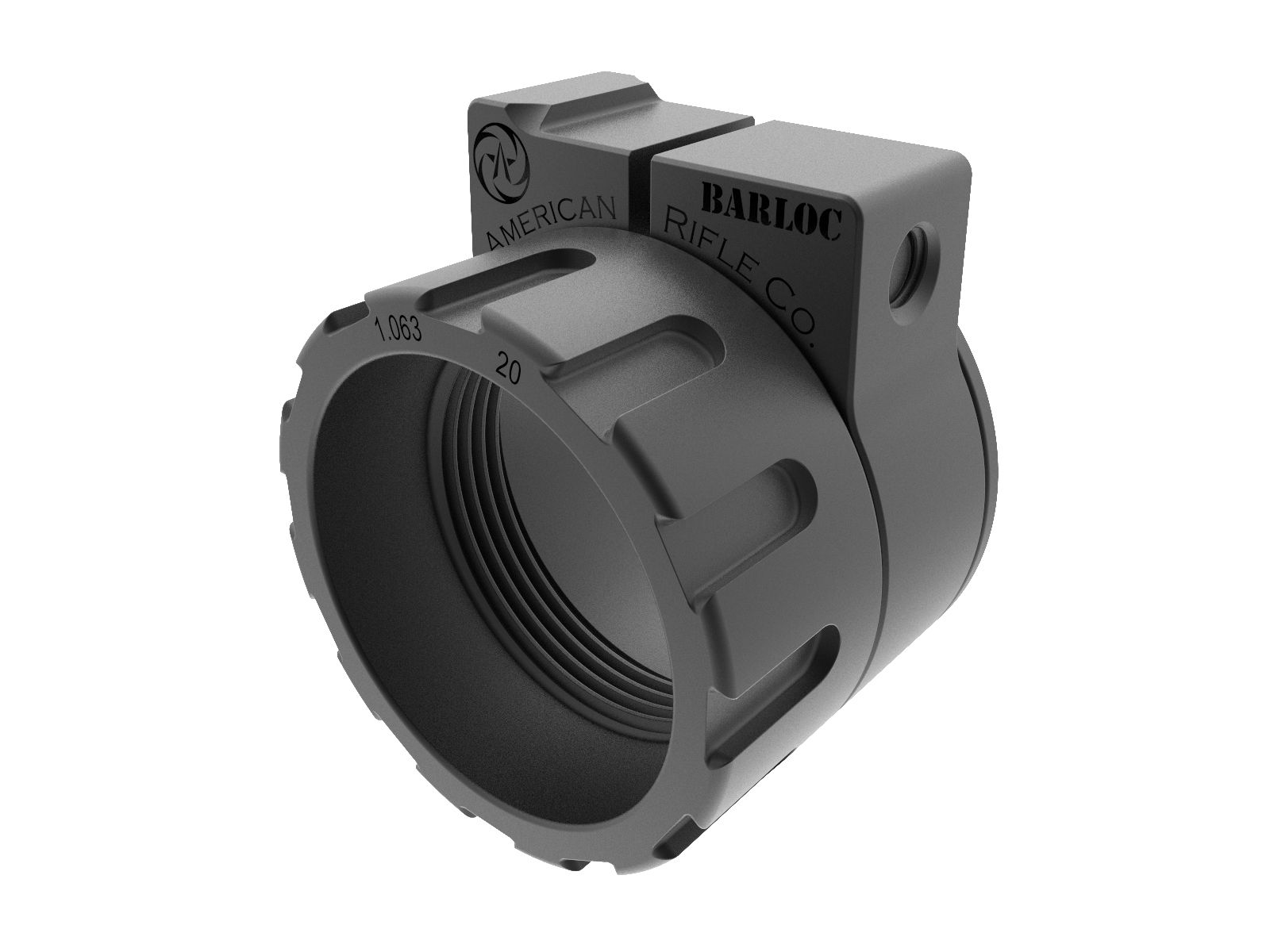

  • American Rifle Company’s Barloc is a device that enables one to remove and re-install a barrel using only a 5/32″ hex key and a head space gage.

  • It is superior to competing products because it actually preloads the barrel thread promoting long term receiver-barrel joint stability.

  • 90 lbf-in (10 Nm) of torque applied to the 10-32 clamping screw results in a barrel thread pre-load requiring approximately 100 lbf-ft (136 Nm) of torque to loosen!

  • Barloc Nut thread sizes currently available: (Barloc includes Nut Wrench)

    • 1-1/16" x 16 TPI (Remington)

    • 1-1/16" x 18 TPI

    • 1-1/16" x 20 TPI (Mausingfield, Nucleus, Savage small shank)

    • 1-1/8"   x 20 TPI (Savage large shank)

  • Barrel:

    • Shouldered barrel version: Designed for use with barrels having shoulders and shank diameter of 1.250 inches.

    • Threaded barrel version: Four thread sizes are currently available including those for Savage and Rem-age pre-fit barrels.

  • Intended for use with either recoil lugged or lug-less actions.

  • Made from hardened steel

  • Weight: 3 ounces (86 grams)

  • Proudly engineered and manufactured in the USA.

Barloc with Nut Installation Information

Barloc for Shouldered Barrel Installation Information




Configuration Comparison



Odoo image and text block

Threaded Barrel, With Recoil Lug

Part Stack:

  • 1 Recoil lug with conical interface

  • 1 Clamp ring

  • 1 Nut with conical interface

    • Includes Barloc wrench

Odoo image and text block

Threaded Barrel, With Scope Rail Tab Recoil lug

Recoil lug fits American Rifle Company Bolt actions using recoil lug with tab.

Part Stack:

  • 1 Recoil lug with conical interface and Scope Rail tab

  • 1 Clamp ring

  • 1 Nut with conical interface

    • Includes Barloc wrench

Odoo image and text block

Threaded Barrel, Without Recoil Lug

Part Stack:

  • 1 Conical washer

  • 1 Clamp ring

  • 1 Nut with conical interface

    • Includes Barloc wrench

Odoo image and text block

Shouldered Barrel, Without Recoil Lug

Part Stack:

  • 1 Conical washer

  • 1 Clamp ring

  • 1 Conical washer

Odoo image and text block

Shouldered Barrel, With Recoil Lug

Part Stack:

  • 1 Recoil lug with conical interface

  • 1 Clamp ring

  • 1 Conical washer

Odoo image and text block

Shouldered Barrel, With Scope Rail Tab Recoil lug

Recoil lug fits American Rifle Company Bolt actions using recoil lug with tab.

Part Stack:

  • 1 Recoil lug with conical interface and Scope Rail tab

  • 1 Clamp ring

  • 1 Conical washer
